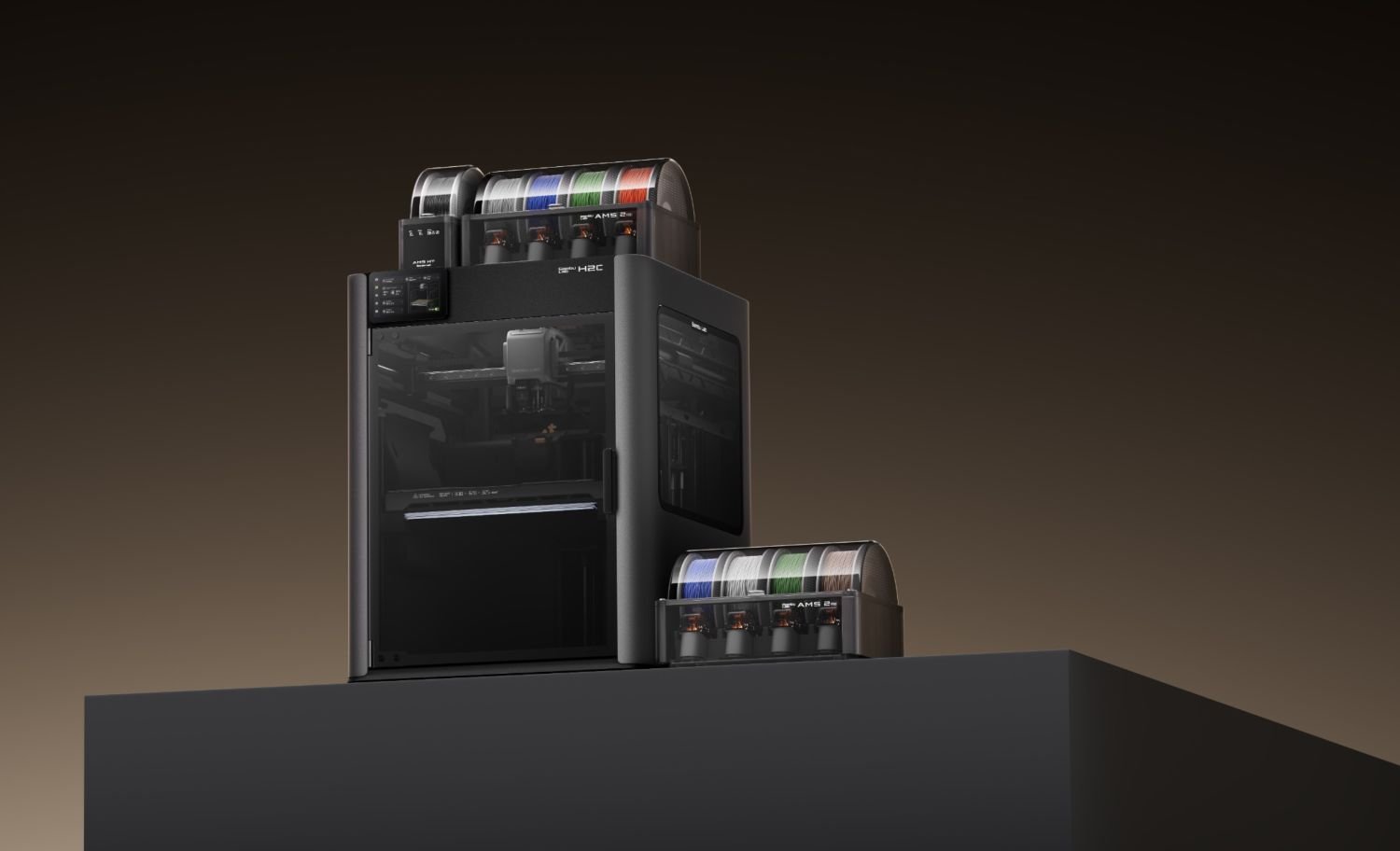

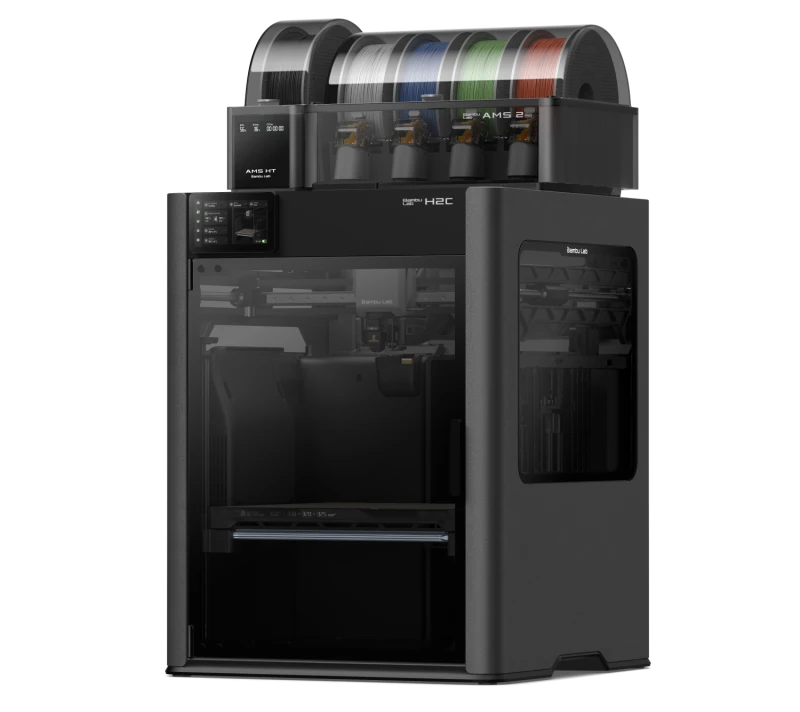

Bambu Lab H2C Laser Full Combo

The full-combo version of Bambu Lab H2C Laser Full Combo, built around the same Vortek hotend-changing system for multi-material printing with minimal purge waste – plus laser/cutting module compatibility.



	Printing speed Up to 1000 mm/s		Compatible materials PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS; Carbon fiber/fiberglass reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA, PPS
	Maximum Print Volume  330*320*325 mm³		Maximum nozzle temperature Up to 350 °C

• Print speed: up to 1,000 mm/s
• Max nozzle temp: 350°C
• Build volume: 330 × 320 × 325 mm³
• Materials: PLA, PETG, TPU, PVA, ABS, ASA, PC, PA, PPS, plus carbon fiber/fiberglass-reinforced variants

Vortek System

• 6 interchangeable hotends, each dedicated to one filament. Bambu Lab H2C Laser Full Combo
• Up to 7 materials in a single print, up to 24 with multiple AMS units
• Contactless inductive connection — no pins, no oxidation, tens of thousands of cycles without wear
• Cold-to-350°C heating in ~8 seconds (70% faster than resistive heating)
• “Hotend Remembers” — auto-recalls last-used filament per nozzle

Waste & Efficiency

• Zero purge cycle with 6 filaments or fewer
• Complex 6-color prints often produce under 200g of waste vs. several kg on traditional systems
• Smart algorithm auto-calculates most efficient hotend/filament assignment

Precision

• Automatic inductive nozzle offset calibration, accurate to under 25 µm
• PMSM servo extruder — 70% more force than standard steppers, self-monitors 20,000x/second
• Optional Vision encoder for under 50 µm motion accuracy
• Eddy current sensors auto-calibrate pressure advance per filament for smooth surfaces and sharp corners
• CoreXY frame holds accuracy at full 1,000 mm/s speed. Bambu Lab H2C Laser Full Combo

Chamber & Materials

• 65°C closed-loop heated chamber
• Built for PA6-GF, PC-FR, PET-CF, TPU
• Reduces warping, corner lifting, delamination on large/complex parts.

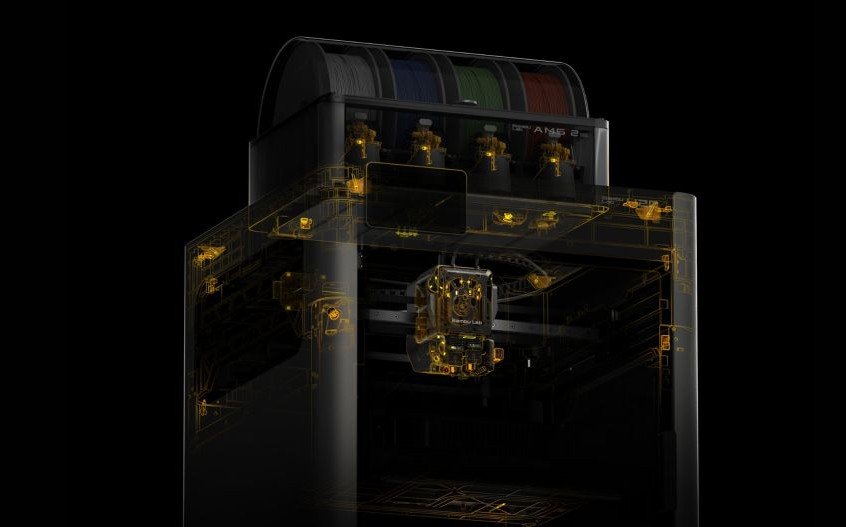

Monitoring & Safety

• 59 sensors (temperature, vibration, filament, door, humidity). Bambu Lab H2C Laser Full Combo
• 4 AI cameras (nozzle macro, bird’s-eye, live view, tool head)
• Automated pre-flight bed scan and settings check
• Push notifications via Bambu Handy
• Chamber built from UL94 V-0 fire-retardant materials
• Multi-sensor closed-loop thermal control on nozzle, bed, and chamber

Connectivity

• Full offline mode for isolated setups
• Secure cloud connectivity for remote monitoring
• MQTT Developer Mode for integrators (auto-disabled during laser/cutting operation). Bambu Lab H2C Laser Full Combo

TECHNICAL SPECIFICAATIONS

Technology	FDM (Fused Deposition Modeling) – Filament Deposition
Manufacturing Volume (L x W x H)	Single Nozzle Printing: 325*320*325 mm³ (Left) Single Nozzle Printing: 305*320*325 mm³ (Right) Dual Nozzle Printing: 300*320*325 mm³ Total Volume for Two Nozzles: 330*320*325 mm³
Printing speed	Maximum print head speed: 1000 mm/s Maximum print head acceleration: 20,000 mm/s²
Maximum throughput for Hotend	40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; printing temperature of 280 °C)
Filament diameter	1.75 mm
Supported nozzle diameter	0.2mm, 0.4mm, 0.6mm, 0.8mm
Extruder gears	Hardened steel
Buzzard	Hardened steel
Filament cutter	Integrated
Extruder motor	Bambu Lab High Precision Permanent Magnet Synchronous Motor
Chassis	Aluminium and steel
Outer frame	Plastic and glass
Printing platform
Construction plate material	Flexible steel plate
Supported print bed types	Textured PEI plate
Construction platform material	Textured PEI plate, technical plate
Air filter	G3 Pre-Filter H12 HEPA Filter Granulated coconut shell VOC filtration: Superior. Particle filtration: Supported.
Camera integrated inside the machine	Live camera: 1920*1080 Nozzle camera: 1920*1080 Integrated Toolhead Camera; 1920*1080 Integrated BirdsEye Camera; 3264*2448
Sensors	Door sensor,    filament end sensor,     filament tangle sensor

Filament odometry (Supported with AMS)
Power loss recovery   FilamentsPLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS; carbon/glass fiber reinforced, PLA, PETG,
PA, PET, PC, ABS, ASA, PPA, PPS

TemperatureBambu Lab H2C Laser Full ComboMaximum extruder temperature350 °CMaximum room temperature65 °CMaximum heating plate temperature120 °CActive room heating    Support

Cooling : Closed-loop controlCooling fan for parts,
Cooling fan for hotend,
Main control board fan,
Chamber exhaust fan,
Chamber heat circulation fan,
Auxiliary parts cooling fan

Improved cooling fan for tool head

Software

Slicer Bambu Studio supports third-party slicers that export standard G-code, such as Super Slicer, Prusa Slicer, and Cura, but some advanced features may not be supported.

Supported operating systems macOS, Windows, Linux

Wi-Fi
Operating frequency2412–2472 MHz, 5150–5850 MHz (FCC/CE)
2400–2483.5 MHz, 5150–5850 MHz (SRRC)Wi-Fi transmitter power (EIRP)    2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5 GHz band 1/2: <23 dBm (FCC/CE/SRRC/MIC)
5 GHz band 3: <30 dBm (CE); <24 dBm (FCC)
5 GHz Band 4: <23 dBm (FCC/SRRC); <14 dBm (CE)Wi-Fi Protocol IEEE 802.11 a/b/g/n

Others
Printer dimensions492 x 514 x 626 mm³Net weightH2C: 32.5 kg

ORDER CONTENTS FOR THE Bambu Lab H2C Laser Full Combo

• Bambu Lab H2C Laser Full Combo

	H2C AMS Combo (Standard Pack)	H2C Laser Full Combo	Ultimate Pack
H2C	1
H2C Laser Edition		1
Plateau	1	1
Spool holder	1	1
0.4 mm Induction Nozzle	4	4	3
0.2 mm Induction Nozzle	1	1
0.6 mm Induction Nozzle	1	1
0.4 mm hardened steel hotend	2	2
0.2 mm stainless steel hotend			1
0.6 mm hardened steel hotend			1
PTFE 4-in-1 Adapter II	1	1
Accessory Box	1	1
AMS 2 Pro	1	1	1
AMS HT			1
10W Laser Module		depending on option
40W Laser Module		depending on option
Cutting Module (with pen holder)		1
Laser Platform		1
Cutting Platform		1
Emergency Stop Button		1
Premium after-sales service for 3D machines
1-year warranty
