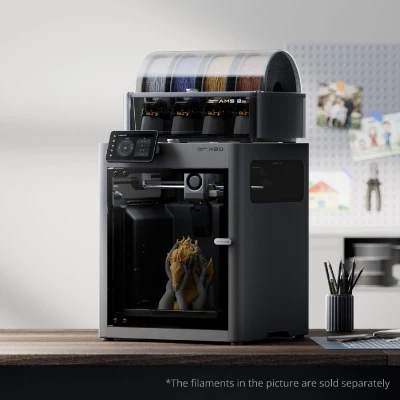

Bambu Lab X2D AMS Combo
The Bambu Lab X2D AMS Combo represents the next generation of high-speed, multi-material 3D printing. Engineered for creators, engineers, and production studios, the Bambu Lab X2D AMS Combo merges ultra-fast CoreXY motion performance with an advanced dual-nozzle toolhead system and an actively heated build chamber. Paired with the next-generation AMS (Automatic Material System) 2 Pro, this desktop manufacturing powerhouse eliminates traditional multi-color purge waste while delivering effortless, clean support removal and flawless structural prints across engineering-grade materials. Bambu Lab X2D AMS Combo
Key Features & Technology Highlights
Smart Dual-Nozzle Extrusion System
Unlike single-nozzle systems that generate excess waste and long cycle times when switching materials, the Bambu Lab X2D AMS Combo, features a dual-nozzle architecture:
-
Primary Direct-Drive Extruder: Features a low-mass direct-drive system powered by a PMSM closed-loop servo motor. It delivers ultra-precise filament control up to 1,000 mm/s print speeds and 20,000 mm/s² acceleration, ideal for complex geometry and fine detail.
-
Auxiliary Support Nozzle: Dedicated to support materials (such as PVA, Breakaway, or cross-compatible support filaments).
-
Gear-and-Trigger Switch: Swapping between primary and secondary nozzles takes less than a single second thanks to a lightweight internal mechanical gear mechanism—maximizing speed while minimizing filament purge.
Actively Heated Thermal Chamber (Up to 65°C)
Print advanced technical polymers with confidence. Bambu Lab X2D AMS Combo. The fully enclosed chamber features active temperature control up to 65°C, ensuring uniform heat distribution. Bambu Lab X2D AMS Combo. Combined with a 300°C all-metal hotend and a 120°C magnetic build plate, the X2D eliminates warping, layer delamination, and thermal stress on difficult engineering materials like ABS, ASA, PC, Nylon (PA), and carbon-fiber reinforced filaments.
AMS 2 Pro Multi-Material & Multi-Color System
The included AMS 2 Pro system manages dry filament storage, automatic feeding, and multi-spool switching. Bambu Lab X2D AMS Combo. Print up to 4 colors or materials out of the box-or expand up to 25 colors with additional AMS units. Intelligent moisture sealed-chamber housing keeps hygroscopic filaments dry throughout long print jobs. Bambu Lab X2D AMS Combo
AI-Powered Diagnostics & Flow Calibration
Equipped with a dual-camera setup (Chamber AI Liveview & Toolhead Camera) and over 30 integrated sensors, Bambu Lab X2D AMS Combo, the system performs continuous real-time inspection:
-
Automatic Detection: Scans for build plate alignment, foreign objects, filament grinding, purge chute blockages, and “spaghetti” errors before they waste time or material.
-
Dynamic Flow Calibration: Builds real-time nonlinear extrusion models to compensate for wear, nozzle pressure variations, or minor dampness.
-
PMSM Torque Sampling: Measures resistance at 20 kHz to smooth out micro-fluctuations, giving exterior walls a satin-smooth finish free of artifacts.
Clean Air Filtration & Silent Operation
Designed for living rooms, design studios, and office environments:
-
Three-Stage Air Purification: Runs a G3 pre-filter, H12 HEPA filter, and activated carbon layer to catch VOCs, fine particles, and printing odors.
-
Active Noise Canceling: Optimized air ducts and motor noise cancellation keep operating noise below 50 dB in Silent Mode—perfect for overnight jobs.
Technical Specifications
| Technology | FDM (Fused Deposition Modeling) |
| Print volume (L x W x H) | Main Nozzle Printing:
256mm*256mm*260mm
Auxiliary Nozzle Printing: 235.5mm*256mm*256mm
Dual Nozzle Printing: 235.5mm*256mm*256mm
Total Volume for Two Nozzles: 256mm*256mm*260mm |
| Printing Speed | Max Speed of Toolhead: 1000 mm/s
Max Acceleration of Toolhead: 20 000 mm/s²
Max Flow for Hotend (Standard Flow Hotend): 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Max Flow for Hotend (Optional High Flow Hotend): 65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature) |
| Max Nozzle Temperature | 300 °C |
| Included Nozzle Diameter | 0,4 mm |
| Diamètre du filament | 1.75 mm |
| Supported Nozzle Diameter | 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm |
| Main Extruder Gear | Hardened Steel |
| Main Extruder Motor | Bambu Lab High-precision Permanent Magnet Synchronous Motor |
| Auxiliary Extruder Gear | Hardened Steel |
| Auxiliary Extruder Motor | Stepper Motor |
| Nozzle | Hardened Steel |
| Filament Cutter | Built-in |
| Chassis | Plastic and Steel |
| Outer Frame | Plastic, Glass, and Metal |
| Physical Dimensions | 392*406*478 mm³ |
| Net Weight | 16.25 kg |
| Heatbed | |
| Supported Build Plate Type | Textured PEI plate, Smooth PEI Plate |
| Max Heatbed Temperature | 120 °C |
| Air Filter | G3 Pre-Filter H12 HEPA Filter Activated carbon filter( Granulated Coconut Shell) VOC Filtration Superior Particulate Matter Filtration Supporte |
| Camera Integrated camera inside the machine | Live View Camera: 1920*1080 Toolhead Camera : 1600*1200 |
| Sensors | Door Sensor Filament Run Out Sensor Filament Tangle Sensor Filament Odometry Supported with AMS Power Loss Recovery |
| Filament Supported | |
| Main Hotend | PLA, PETG, ABS, ASA, TPU, Support for PLA, Support for PLA/PETG, Support for ABS, Support for PA/PET, PET, PA, PC, PVA; Carbon/Glass Fiber Reinforced PLA, PETG, ABS, ASA, PA6, PAHT, PPA, PET |
| Auxiliary Hotend PLA | (excluding PLA Aero), PETG, ABS, ASA, TPU for AMS, Support for PLA, Support for PLA/PETG, Support for ABS, Support for PA/PET, PET, PA, PC, PVA; Carbon/Glass Fiber Reinforced PLA, PETG, ABS, ASA, PA6, PAHT, PET |
| Auxiliary Hotend (print with caution¹) | PLA Silk, PETG-CF, ASA-CF, PA6-CF, TPU for AMS, Support for PA/PET |
| Temperature | |
| Max extruder temperature | 350 °C |
| Max room temperature | 65 °C |
| Max heating plate temperature | 120 °C |
| Supported Build Plate Type | Textured PEI plate, Smooth PEI Plate |
| Active Chamber Heating | Supported |
| Cooling :Closed Loop Control | Part Cooling Fan Cooling Fan for Hotend Main Control Board Fan Chamber Exhaust Fan Chamber Heat Circulation Auxiliary Part Cooling Fan |
| Working Temperature | 10 °C-30 °C |
| Electronics | |
| Touchscreen | 5-inch 1280*720 Touchscreen |
| Storage | Built-in 8 GB EMMC and USB Port |
| Control Interface | Touchscreen, mobile App, PC App |
| Motion Controller | Dual-core Cortex-M4 and Single-core Cortex-M7 |
| Application Processor | Quad-core ARM with dedicated NPU |
| Software | |
| Slicer | Bambu Studio
Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported. |
| Supported Operating System | MacOS, Windows, Linux |
| Network Control | |
| Ethernet | Not Available |
| Wireless Network | Dual-Band Wi-Fi |
| Network Kill Switch | Not Available |
| Removable Network Module | Not Available |
| 802.1X Network Access | Control Not Available |
| Wi-Fi | |
| Operating Frequency | 2412–2472 MHz, 5150–5850 MHz (FCC/CE) 2400–2483,5 MHz, 5150–5850 MHz (SRRC) |
| Wi-Fi Transmitter Power (EIRP) | 2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: <30 dBm (CE); <24 dBm (FCC) 5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE) |
| Wi-Fi Protocol | IEEE 802.11 a/b/g/n |
What’s Included in the Box
- year warranty
- 1 BAMBU LAB X2D AMS 3D Printer
- Textured PEI Build Plate
- AMS 2 Pro (version combo)
- Spool Holder
- Tool Box
- External Exhaust Fan Kit
- Machines-3D premium after-sales service
Why Choose the Bambu Lab X2D AMS Combo?
Whether you are printing complex functional prototypes with breakaway structural supports or multi-color detailed models, the Bambu Lab X2D AMS Combo removes the headaches of manual calibration, warping, and excessive material waste. Unbox, plug in, and experience production-grade additive manufacturing right from your desk within minutes.
